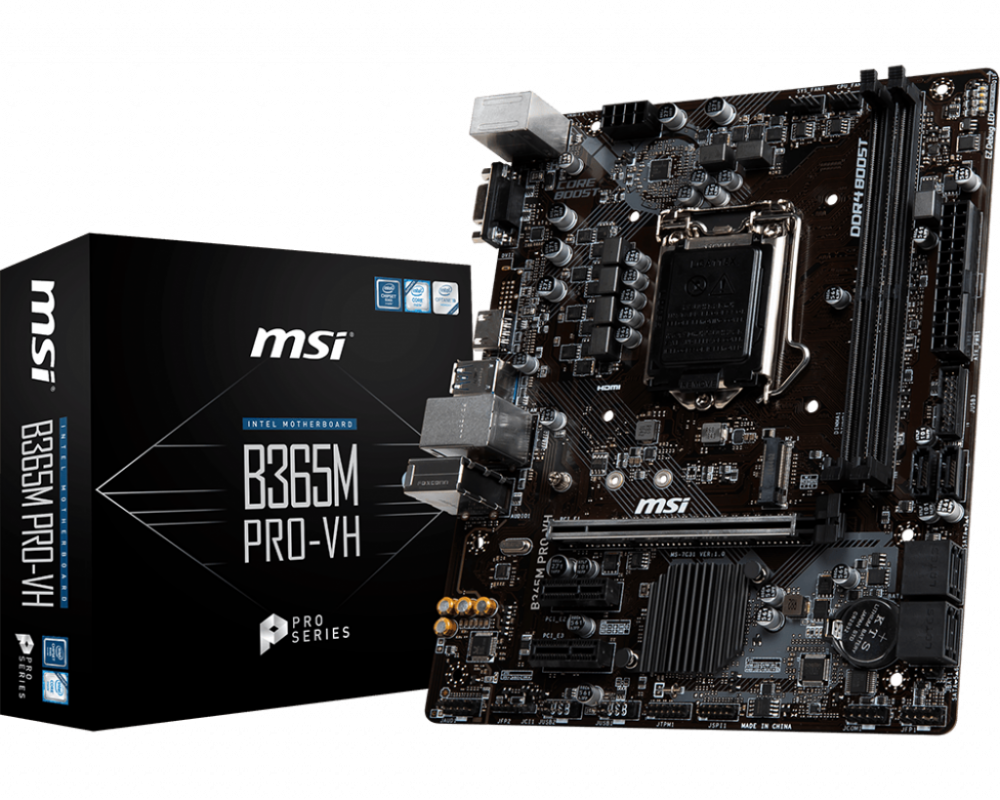

Msi b365m pro-vh

CHIPSET

Intel® B365 Chipset

MEMORY

• 2x DDR4 memory slots, support up to 32GB
• Supports DDR4 2666/ 2400/ 2133 MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)
• Please refer to Compatibility for more information on compatible memory

See supported memory

SLOTS

• 1 x PCIe 3.0 x16 slots
• 2 x PCIe 3.0 x1 slots

ONBOARD GRAPHICS

• 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
• 1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz
• No display support when using the processor model with suffix F

STORAGE

Intel® B365 Chipset

• 6 x SATA 6Gb/s ports1
• 1 x M.2 slot (Key M)
  • Supports up to PCIe 3.0 x4 and SATA 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices
  • Intel® Optane™ Memory Ready2
• The SATA1 port will be unavailable when an M.2 SATA SSD module has been installed in the M.2 slot.
• Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

Intel® B365 Chipset

• Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices

USB

Intel® B365 Chipset

• 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connector)
• 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

AUDIO

Realtek® ALC887 Codec

• 7.1-Channel High Definition Audio

LAN

• 1 x Realtek RTL8111H Gigabit LAN controller

INTERNAL CONNECTORS

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x USB 3.1 Gen1 connector1 (supports additional 2 USB 3.1 Gen1 ports)
• 6 x SATA 6Gb/s connectors
• 1 x Clear CMOS jumper
• 2 x Front panel connectors
• 1 x Serial port connector
• 1 x Chassis Intrusion connector
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1 x Front panel audio connector
• 1 x 4-pin CPU fan connector
• 1 x 4-pin system fan connector
• 1 x TPM module connector

BACK PANEL PORTS

1. PS/2 Combo
2. VGA Port
3. LAN Port
4. HD Audio Connectors
5. USB 2.0 Ports
6. HDMI Port
7. USB 3.1 Gen1 Ports

DIMENSIONS

• 8.9 in. x 7.3 in. (22.6 cm x 18.5 cm)
• Micro-ATX Form Factor

MOUNTING

6 mounting holes

OPERATING SYSTEM

Support for Windows® 10 64-bit
