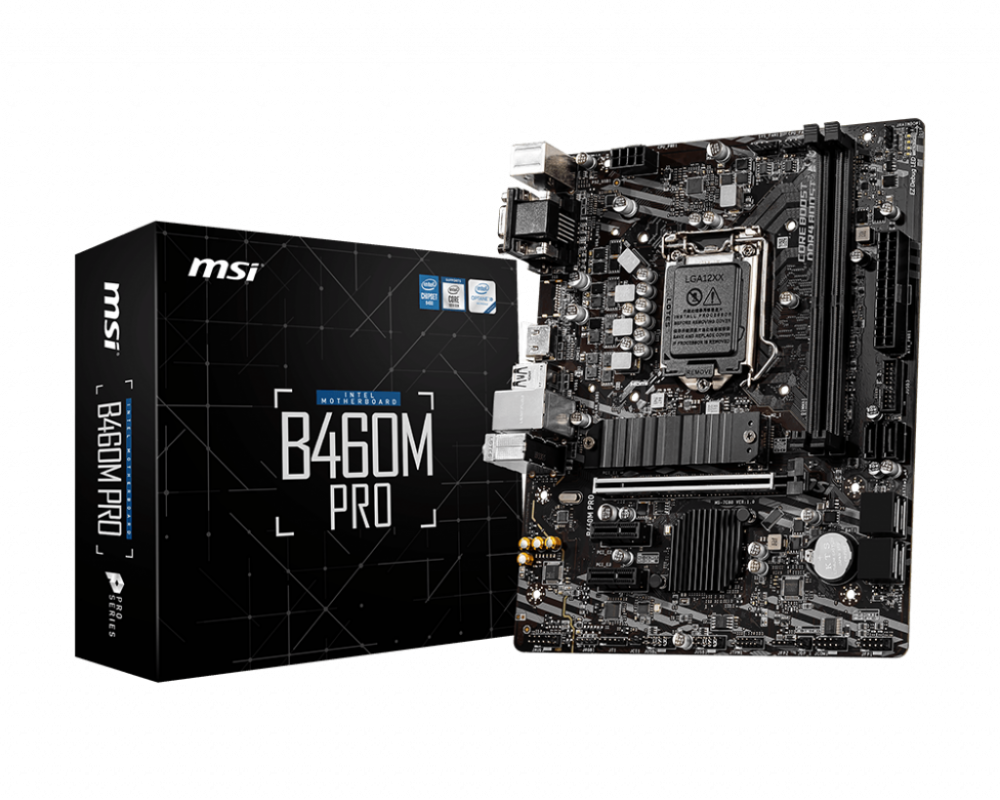

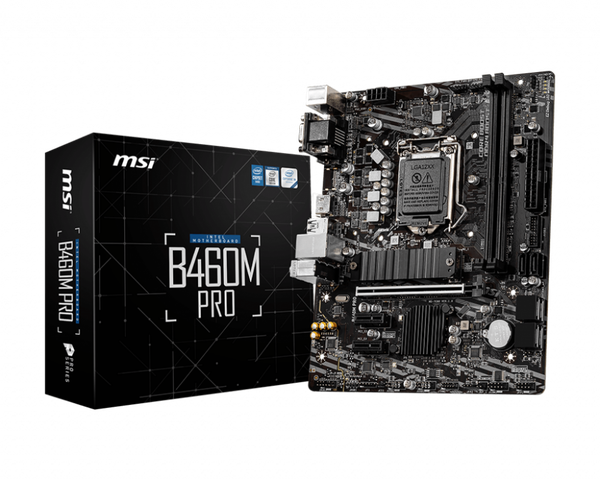

Mainboard msi b460m pro

THÔNG SỐ

CPU

Supports 10th Gen Intel^® Core^™ and Pentium^® Gold / Celeron^® processors for LGA 1200 socket^1 2

1. Please go to www.intel.com for more compatibility information.
2. Onboard graphics output are disabled when using F SKU processors.

CHIPSET

Intel^® B460 chipset

MEMORY

• 2x DDR4 memory slots, support up to 64GB¹
• Intel^® Core^™ i7/ i9
  • Supports up to DDR4 2933 MHz
• Intel^® Core^™ i5 and below
  • Supports up to DDR4 2666 MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

See supported memory

• 1. Please refer www.msi.com for more information on compatible memory.

EXPANSION SLOT

• 1x PCIe 3.0 x16 slot
• 2x PCIe 3.0 x1 slots

ONBOARD GRAPHICS

• 1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
• 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz
• 1x HDMI^™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz

* Maximum shared memory is 1GB

AUDIO

Realtek^® ALC892 Codec

• 7.1-Channel High Definition Audio

LAN

1x Realtek^® 8111H Gigabit LAN controller

STORAGE

Intel^® B460 Chipset

• 6x SATA 6Gb/s ports
• 1x M.2 slot (Key M)
  • Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices¹
  • Intel^® Optane^™ Memory Ready²
  • Supports Intel^® Smart Response Technology for Intel Core^™ processors

1. SATA2 will be unavailable when installing M.2 SATA SSD in the M.2 slot.
2. Before using Intel^® Optane^™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

Intel^® B460 Chipset

• Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices

USB

Intel^® B460 Chipset

• 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
• 6x USB 2.0 ports (2 Type-A ports on the back panel,4 ports available through the internal USB 2.0 connectors)

FORM FACTOR

• Miro-ATX Form Factor
• 9.3 in. x 7.6 in. (23.6 cm x 19.2 cm)

BIOS FEATURES

• 1x 128 Mb flash
• UEFI AMI BIOS
• Multi-language

INTERNAL CONNECTORS

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin system fan connector
• 1x Front panel audio connector
• 2x Front panel connectors
• 1x TPM module connector
• 1x Serial port connector
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x 4-pin RGB LED connector
• 1x 3-pin RAINBOW LED connector
• 4x EZ Debug LED

BACK PANEL CONNECTORS

1. USB 2.0 Type-A ports
2. VGA port
3. LAN port
4. PS/2 keyboard/ mouse combo port
5. DVI-D port
6. HDMI port
7. USB 3.2 Gen1 5Gbps Type-A ports
8. USB 3.2 Gen1 5Gbps Type-A ports
9. Audio jacks
